10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector 174657-2

Name: 10 Pole TE Connectivity Econoseal J Mark II Series Connector 1746572
Brand: YBADDVANCE
Price: 1 USD

Wholesale 10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector 174657-2 from china suppliers

Brand Name : YBADDVANCE

Model Number : 174657-2

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 174657-2

Feature : Waterproof

Martial : PBT/PA66

Color : Black

HS code : 8536909000

Way : 10 hole

Type : Sealed connector

WARRANTY : 1 year

Gender : male

PLACE OF ORIGIN : Shaanxi,China

Contact Now

10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector 174657-2

Description

10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

For Use With: AMP Econoseal J Mark II+ Series Power Contacts
Wire Gauge (Max):24 AWG
Wire Gauge (Min): 16 AWG

Height: 30.7mm

Width: 33.7mm

Depth:36.5mm

Housing Material : PBT

Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber

The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage.

These Econoseal J Mark II (+) series housings also have a plate inserted to detect the half-mating of contacts and a double lock feature.

Though designed initially for automotive applications, Econoseal III can be used in any industry where a reliable sealed connector is needed

Specification

Item name	10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector 174657-2
P/N	174657-2
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	10 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	10 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

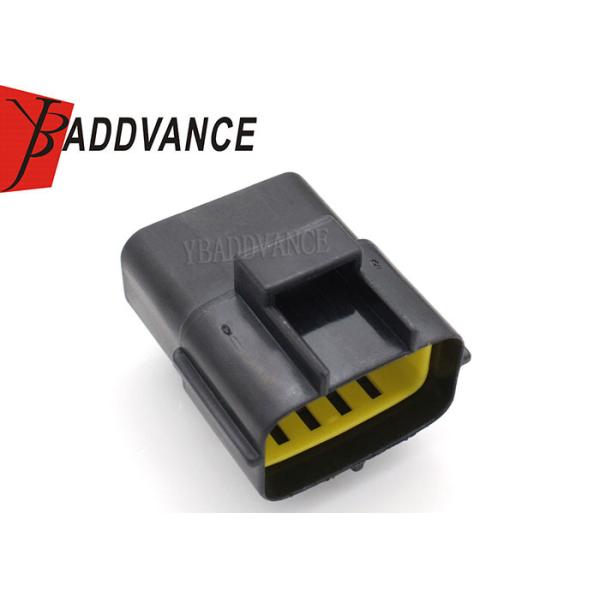

Product Picture Details

10 Pole TE Connectivity Econoseal J Mark II (+) Series Connector 174657-2
